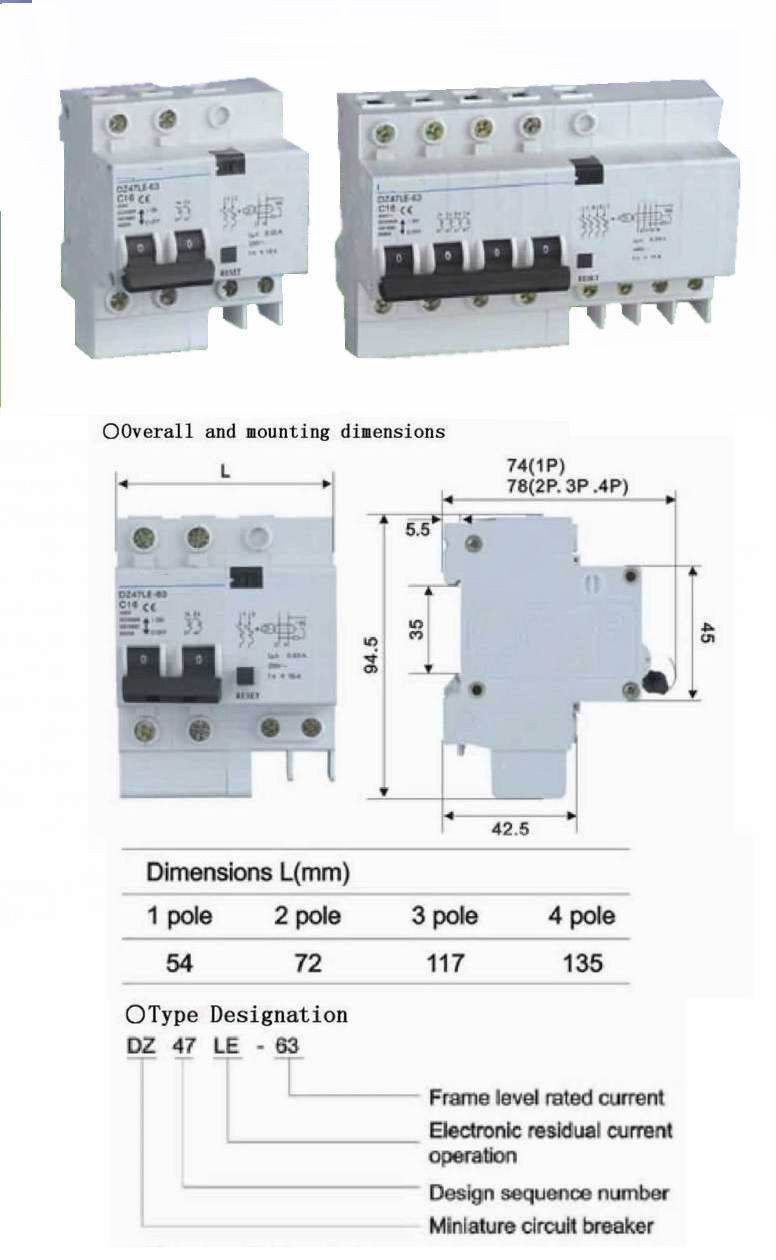

DZ47LE-63 Residual Current Operated Circuit Breaker with overcurrent protection
?Application
The product is mainly used in the line of AC50/60HZ, rated voltage up to 400V and rated current up to 63A.It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to
equipments.
The residual current operated circuit breaker can also function as overload and short-circuit protection and unfrequent changeover of line under normal condition.
It is conformity with GB16917.1, IEC61009-1 standards.
?Main Technical Data
1. Electric ratings: up to 60A,230/400V, AC50/60HZ.
2. Rated current: 6A,10A,16A,20A,25A,32A,40A,50A,63A.
3. Rated residual operating current: 0.03A, 0.1A, 0.3A.
4. No. of pole: 1p, 2p, 3p, 4p
5. Tripping characteristics: C, D
6. Rated residual current operated making and breaking capacity: I?m:2000A.
7. Rated residual non-operated current: 0.5I?n
|
