B8LE-63 Residual Current Operated Circuit Breaker with overcurrent protection(Electronic)
?Application
The product is used for AC 50/60HZ ,single pole and two poles 230V;three poles and four poles 400V, rated current is up to 40A.It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value.It can effectively protect personal security
and avoid the damage to equipments. The circuit-breaker can also function as overload and short-circuit protection and unfrequent changeover of line under normal condition.
It is suitable for industry, business, building and residence,etc.
The product is conformity with GB16917.1,IEC61009-1 standards.

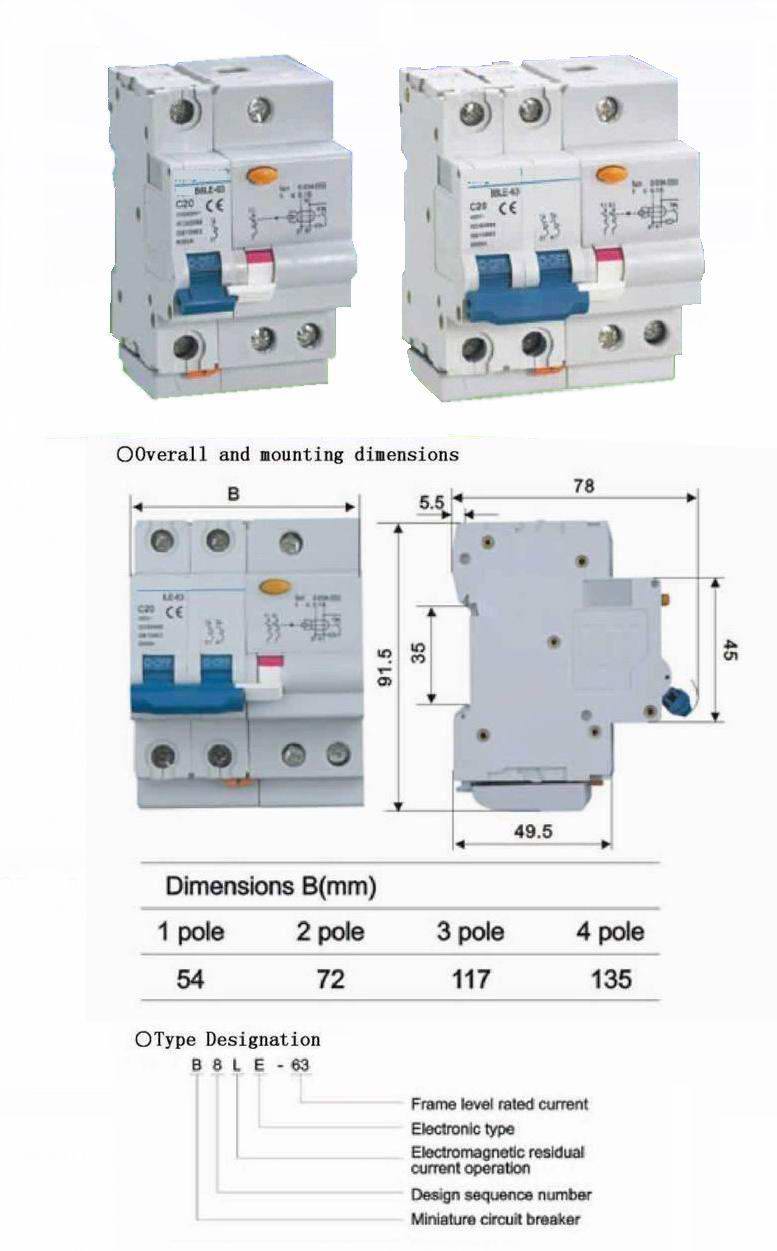

?Overall and mounting dimensions
1. Rated current: 6A,10A,16A,20A,25A,32A, 40A,50A,63A.
2 .Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity I?m: 500A
6. Rated residual non-operated current: I?no: 0.5I?n
|
