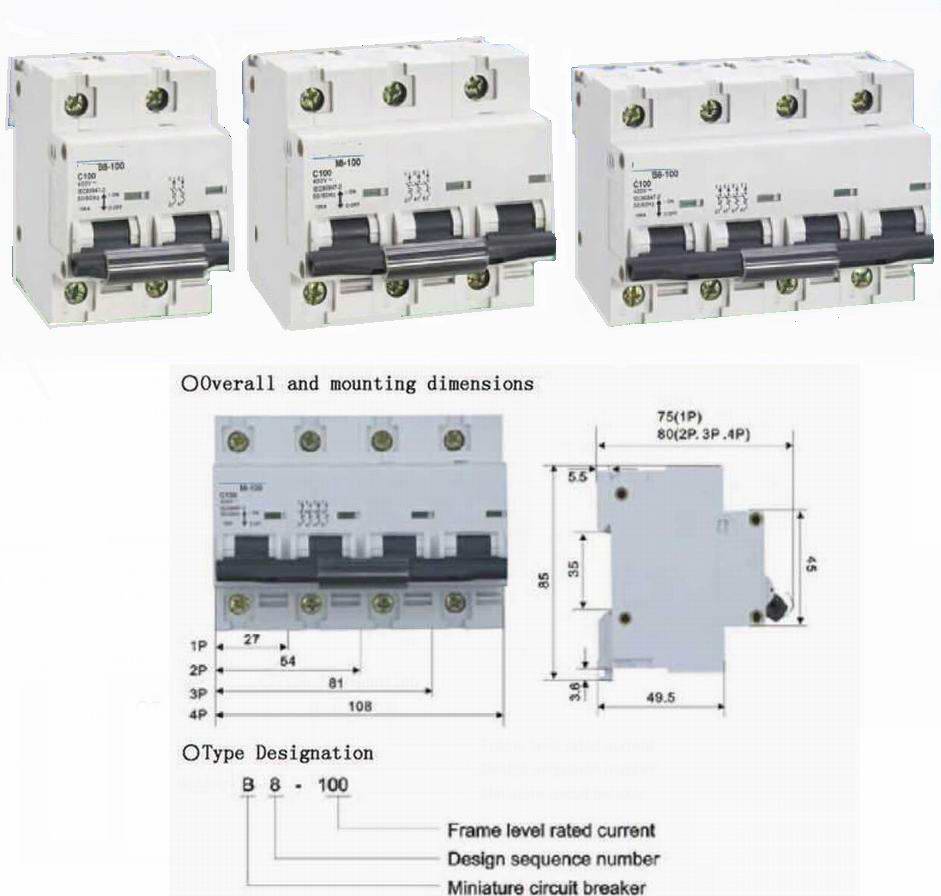

B8-100 Mini Circuit Breaker
?Application
The product is used in AC50/60HZ single pole 230V, two,three, four poles 400V,rated current 63~100A,for protecting the circuit from overload and short circuit. Meanwhile it is applicable
to an unfrequent switch over the electric apparatus and lighting circuit under normal condition.
It is conformity with GB14048.2,IEC60947-2standards.
?Main Technical Data
1. Rated current: 63A,80A,100A.
2. No. of pole: 1p, 2p, 3p, 4p.
3. Rated voltage: 230/400V.
4. Mounting mode: Plug-in mounting to standard rail.
?Feature
The breaker is characterized by compact design, lightweight,elegant appearance, high breaking capacity, swift tripping and long service life.
|
